Description

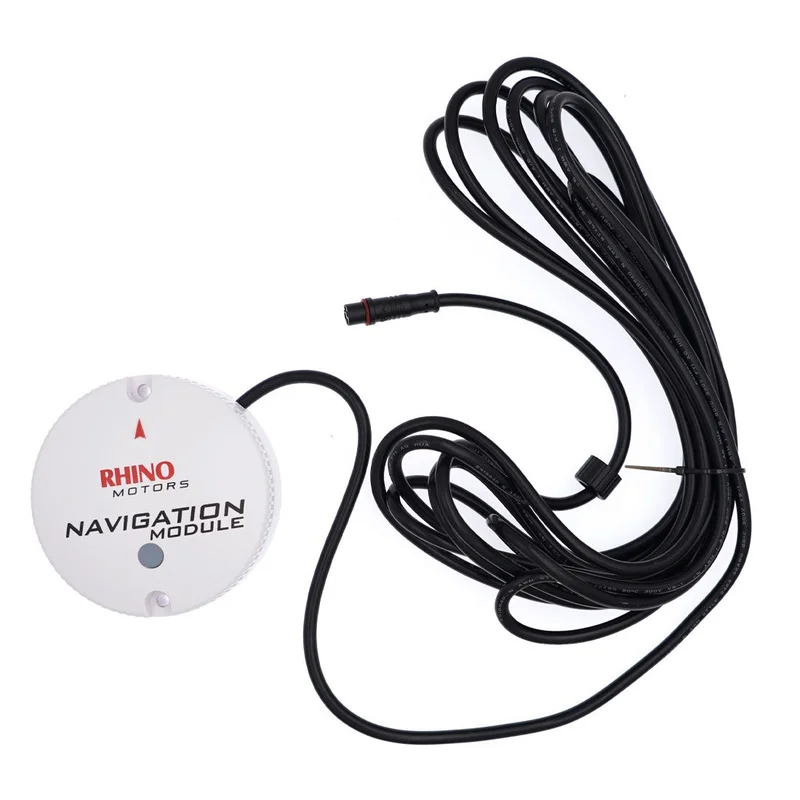

The Rhino GPS navigation module is an additional component, tailor-made for the Rhino BMR GPS motor series. It is designed for the 12 volt + 24 volt version of the Rhino BMR motor.
The optional Rhino GPS navigation module, increases the precision and performance of the BMR GPS motor. In this respect, it is aimed at the ambitious angler who wants to experience the full range of performance of a GPS-controlled electric motor. The module improves the navigation performance of tracking and anchor mode, reduces cable twists and adds a shift function to the engine. By means of this function, the position of the boat can be gradually shifted in 4 different directions, 1 meter at a time, by pressing the respective direction button on the remote control.
At the same time, the module is easy to install, it is connected directly to the Rhino BMR GPS motor with the 5m long connection cable.
Increases the precision and performance of the BMR GPS motor
Improves the navigation performance of tracking and anchor modes
Reduces cable twists and adds a shift function to the engine
Easy to install with the supplied 5m long connection cable
Download here the product’s manual.
Installation Instructions
Install the module at the stern of the boat, at a distance of more than 1 m from the Rhino BMR GPS Trolling Motor
The arrow on the cover should point towards the bow of the boat
The axis of the two screw holes should be parallel to the keel of the boat
Install the sensor on a flat, horizontal surface. Do not place on an inclined surface
Make sure there are no live wires, or ferrous objects within 15 cm of the sensor
Use the enclosed mounting screws as the best option for mounting
Connect the navigation module signal cable directly to one of the existing terminals at the base of the BMR GPS Trolling motor
Technical Characteristics
Color: White
Part Number: R2010005
