Description

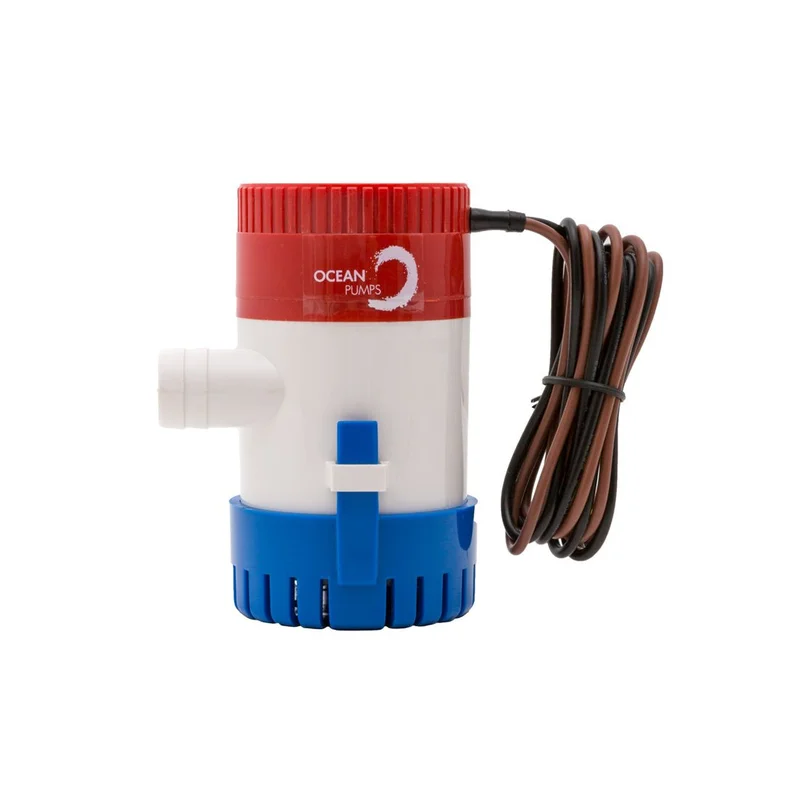

The Ocean, compact 12V bilge pumps have been designed for use in all types of boats.
They are water cooled, ignition protected and extremely efficient. They draw low current and offer high capacity output in a very compact housing, to fit into the smallest available space.
The Ocean Bilge Pumps are of anti airlock design and equipped with gaskets for a water tight seal.
Technical Characteristics
Light, compact pump for ski-boats and small vessels
Tough plastic body with integral strainer
Quick release inlet strainer allows rapid cleaning
Low amp draw conserves batteries
Ignition protected
Submersible
No burn-out when dry
Stainless steel shaft
Avalable in 12V and 24V
|
Code |
Output |
Supply |
Current |
Dimensions |
Connection |
|
01812-110012 |
1100 GPH / 69,2 LPM |
12 V |
3.0A |
H108 x W100,7 mm |
29 mm |
|
01812-110024 |
1100 GPH / 69,2 LPM |
24 V |
1.8A |
H108 x W100,7 mm |
29 mm |
|
01812-35012 |
350 GPH / 22 LPM |
12 V |
1.8A |
H108 x W90,7 mm |
19 mm |
|
01812-35024 |
350 GPH / 22 LPM |
24 V |
1.0A |
H108 x W90,7 mm |
19 mm |
|
01812-50012 |
500 GPH / 31,5 LPM |
12 V |
2.2A |
H108 x W90,7 mm |
19 mm |
|
01812-50024 |
500 GPH / 31,5 LPM |
24 V |
1.2A |
H108 x W90,7 mm |
19 mm |
|
01812-75012 |
750 GPH / 47,3 LPM |
12 V |
2.5A |
H108 x W90,7 mm |
19 mm |
|
01812-75024 |
750 GPH / 47,3 LPM |
24 V |
1.2A |
H108 x W90,7 mm |
19 mm |
