Description

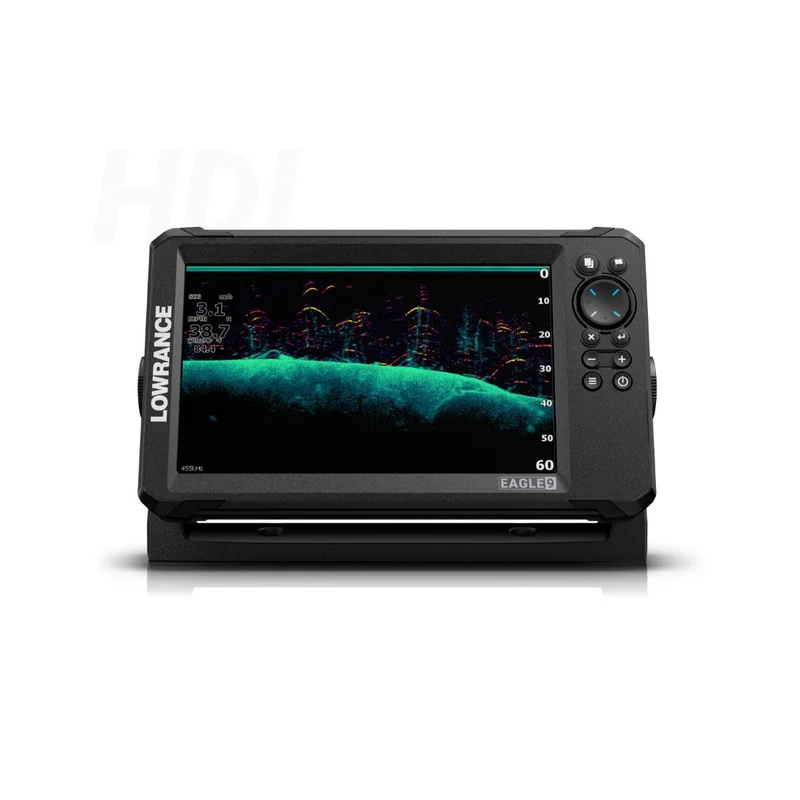

With razor sharp vision, the Lowrance Eagle Fishfinder & Chartplotter was born to fish. Get autotuning sonar, detailed C-MAP charts, and an always-visible IPS screen. Thats everything you need to dominate out on the water with total ease and no distractions.
The newly designed Triple Shot HD and Split Shot HD transducers, offer improved clarity, depth, and sensitivity, all leading to better performance under the surface. Eagle Eye provides easy access to live sonar, features new IPS screens, for improved resolution, clarity and visibility, even with polarized sunglasses in direct sunlight.
Also the Lowrance Eagle Fishfinder gives you the optimal settings from the start so you dont have to spend time trying to find them yourself. Spend more time fishing and less time reworking your sonar settings with Autotuning Sonar, which ensures you get the best sonar image every time by automatically adjusting settings as fishing conditions change.
Included eye HDI 50/200 with Downscan.
Technologies
The New Tripleshot HD features the fish finding capability of wide angle, high Chirp sonar and the high resolution images of fish-holding structure, from Side Scan and Downscan Imaging. Chirp sonar delivers high-resolution views of individual fish targets, even when targets are close to the bottom, or suspended in tight schools. Down Scan Imaging makes it easier to identify how fish relate to structure, providing photo-like images of rocks, trees and other underwater structures directly beneath your boat. Side Scan helps search large areas for fish-holding structure. See up to 600ft either side of your vessel, helping you cover more water in a shorter period of time.
The New Splitshot HD gives you the best underwater views below the boat, featuring the fish-finding capability of wide-angle Chirp sonar and the high resolution images of fish holding structure from Side Scan and Downscan Imaging.
The Hybrid Dual Imaging is perfect for anglers who want the best views below the boat, even in deeper water. The HDI transducers feature the fish-finding capability of powerful Chirp sonar and the high resolution images of fish holding structure from Downscan Imaging.
With its wide angle sonar, the Bullet Transducer provides more coverage of the water column, with a continuous right to left scroll, across the screen, making it easy to interpret and spot.
The improved twist-locking connector allows for easy and reliable installation and removal, making the Lowrance Eagle a great portable solution for any type of fishing.
Technical Characteristics
Screen Size: 9″ IPS
Resolution: 1024 x 600
Keypad: 9-way directional keypad, Pages, Waypoint, Exit, Enter, Zoom, Menu, Power
Viewing Angles in Degrees: 85° Top / Bottom, 85° Left / Right
Sonar Compatibility: Integrated CHIRP, Broadband, DownScan
Max Depth: 200 kHz: 152m
Max Depth DownScan: 91m
Max Range SideScan: 183m side-to-side
Sonar Frequencies CHIRP : 200kHz / 83kHz / 50 kHz
Cartography Included: C-MAP® Inland Charts
Waypoints: 3000
Routes: 100
Trails: 100
1 port for Sonar
Card Reader: 1 slot up to 32GB
Supply Voltage: 12 VDC
Power Consumption: 550mA , 250mA at 12VDC
Recommended Fuse Rating: 5A
Weight: 0.9 kg
Mounting Type: Panel Mount, or Bracket Mount
Rating: IPX7 with card door closed
